Product Description

i

Basic Info

Model NO.
HE500, HE1000, HE2000
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
Electric Motor
Certification
CE, ISO 9001
Product Name
E-Shape Lift Table
Capacity
500-2000kg
Power Pack
380V/50Hz, AC0.75kw
HS Code
84279000
Production Capacity
600PCS/Month
Low Profile E-Shape Top Platform Hydraulic Scissor Lift
Low Profile E-Shape Top Platform Hydraulic Scissor Lift Table

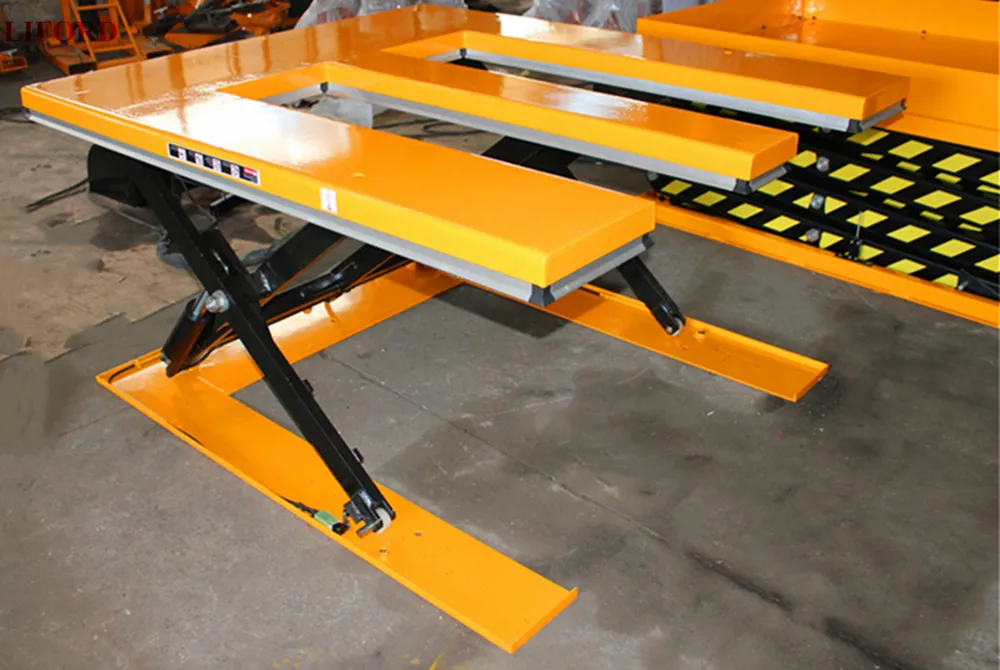

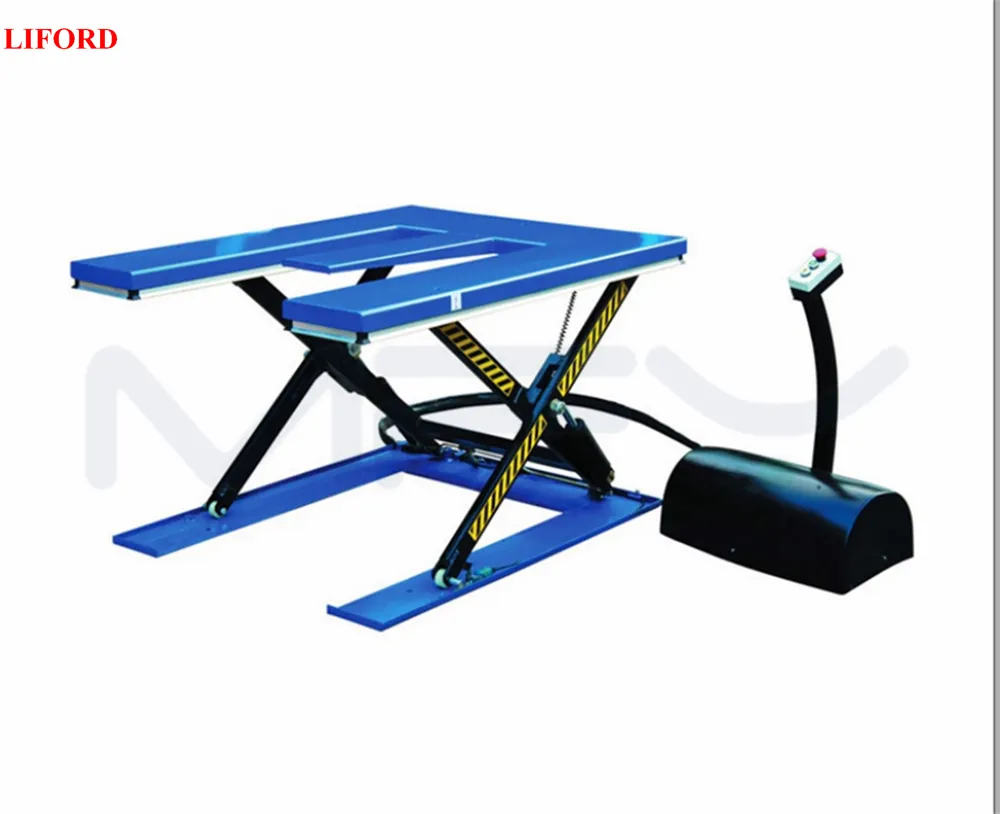

Lift Detail 1 Lift Detail 2
★

Key Features

✓'E' Shaped Top Platform designed specifically for handling pallets.
✓No need for a pit or load ramps, facilitating easy site integration.
✓Manufactured to European safety standards including EN1570:1990.
✓Remote power pack with pedestal and IP54 protected controls.
✓Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
✓24V control box with UP/DOWN buttons and emergency stop.
✓External power pack with relief valve against overloading.
✓Hose burst safety valve to prevent emergency lowering during breakage.
✓Removable lifting eyes for easy handling and installation.
✓Oiless bushings on pivot points for reduced maintenance.

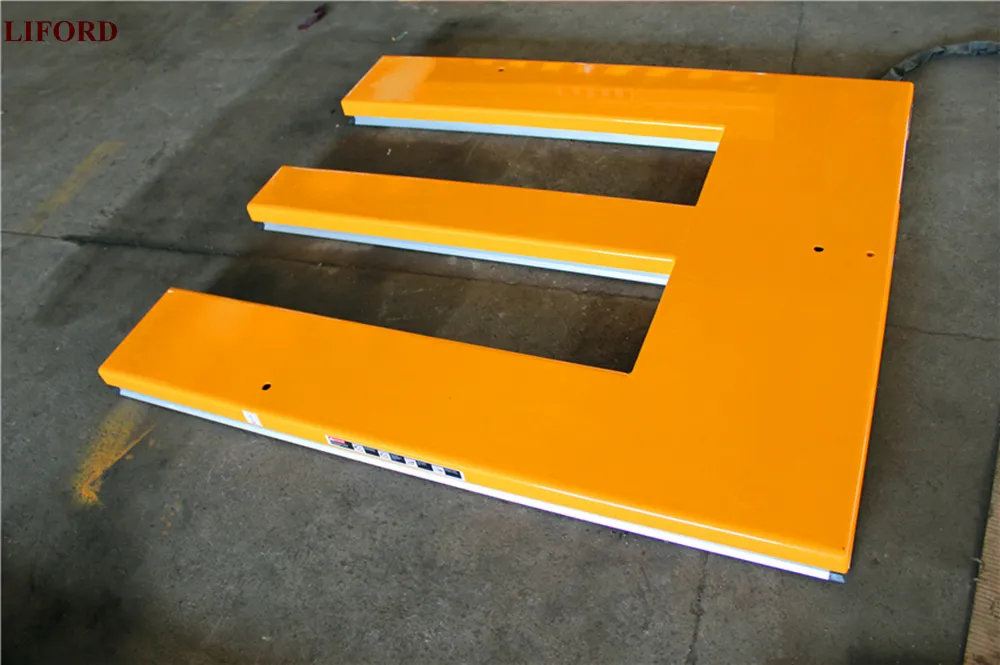

Operational View 1 Operational View 2
⚙

Technical Specifications

Model HE500 HE1000 HE1500 HE2000
Capacity (kg) 500 1000 1500 2000
Max. height H (mm) 580 580 580 580
Collapsed height h(mm) 85 85 105 105
Platform L×W(mm) 1400×1200 1450×1140 1600×1180 1600x1180
Lifting Time (sec) 25~35 25~35 30~40 30~40
Power Pack (KW) 0.75KW 0.75KW 1.5KW 2.2KW
Net Weight (kg) 207 285 390 420

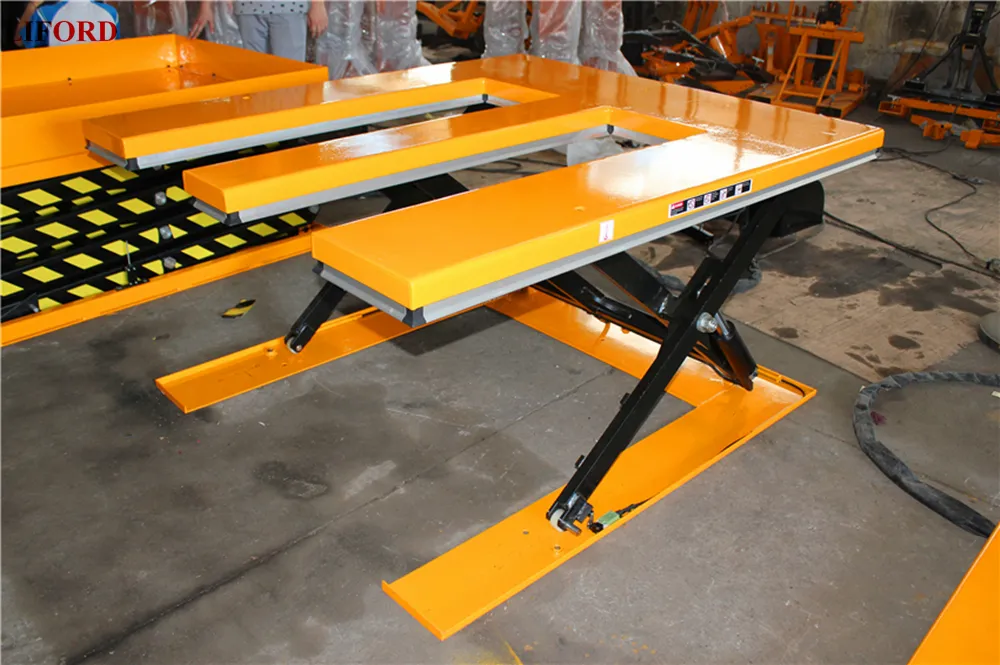

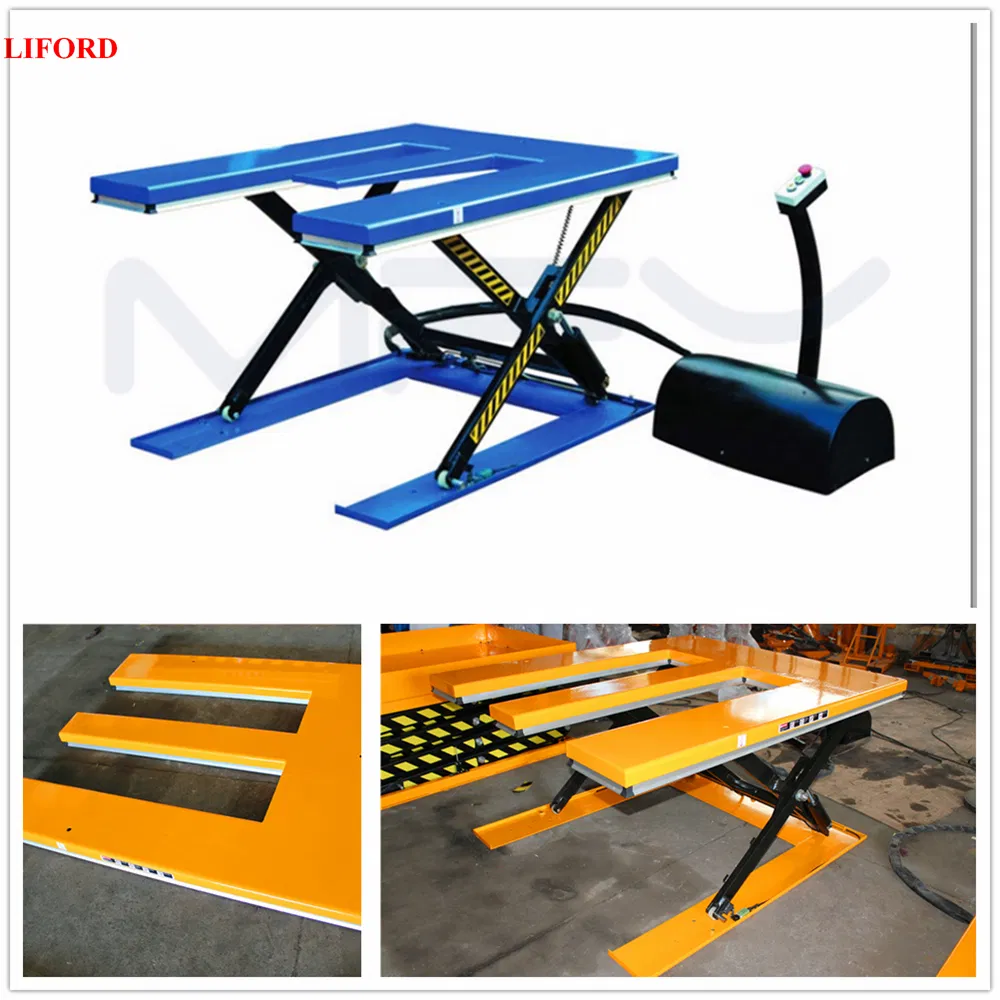

Application Image 1 Application Image 2
◈

Related Equipment & Feedback

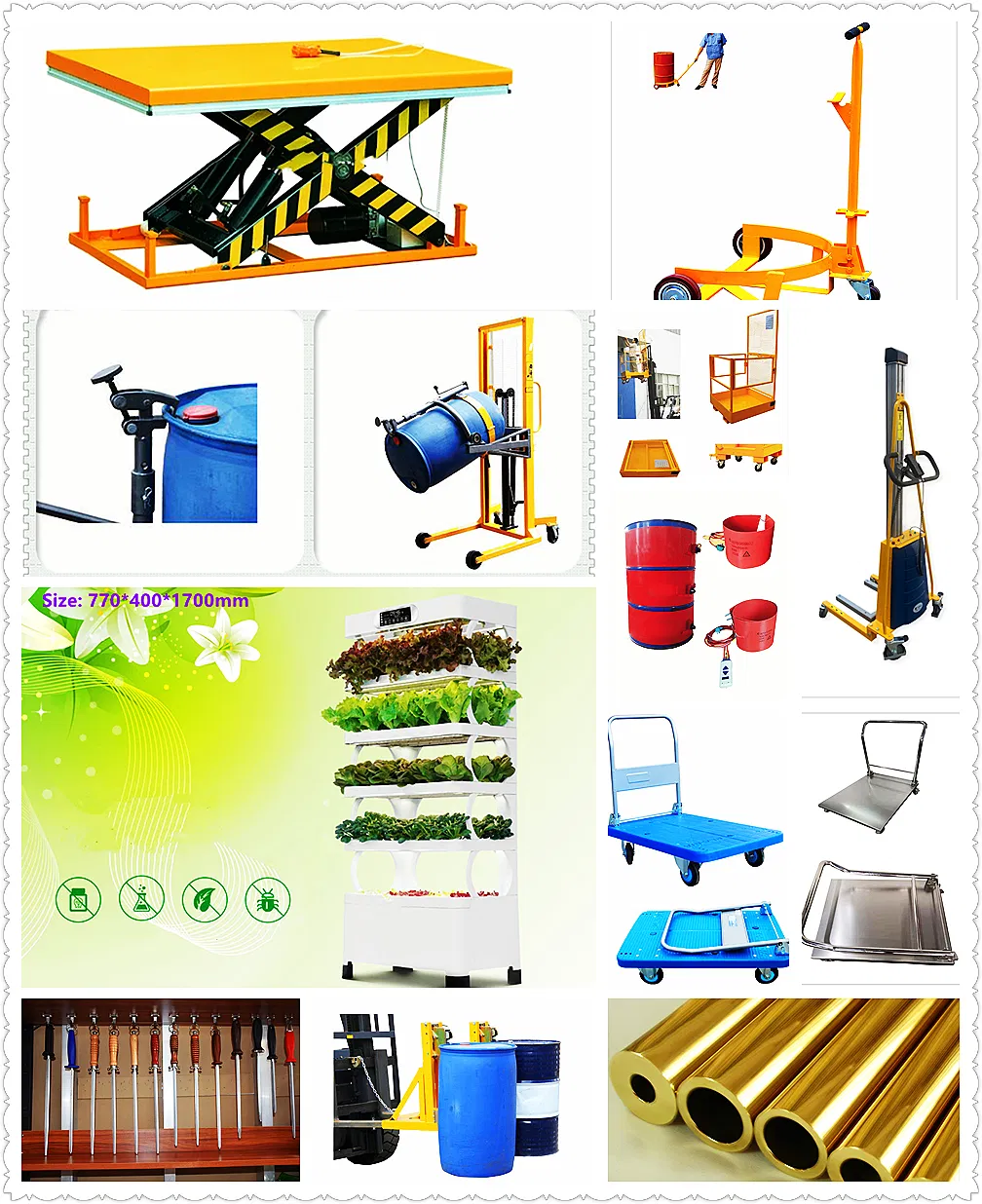

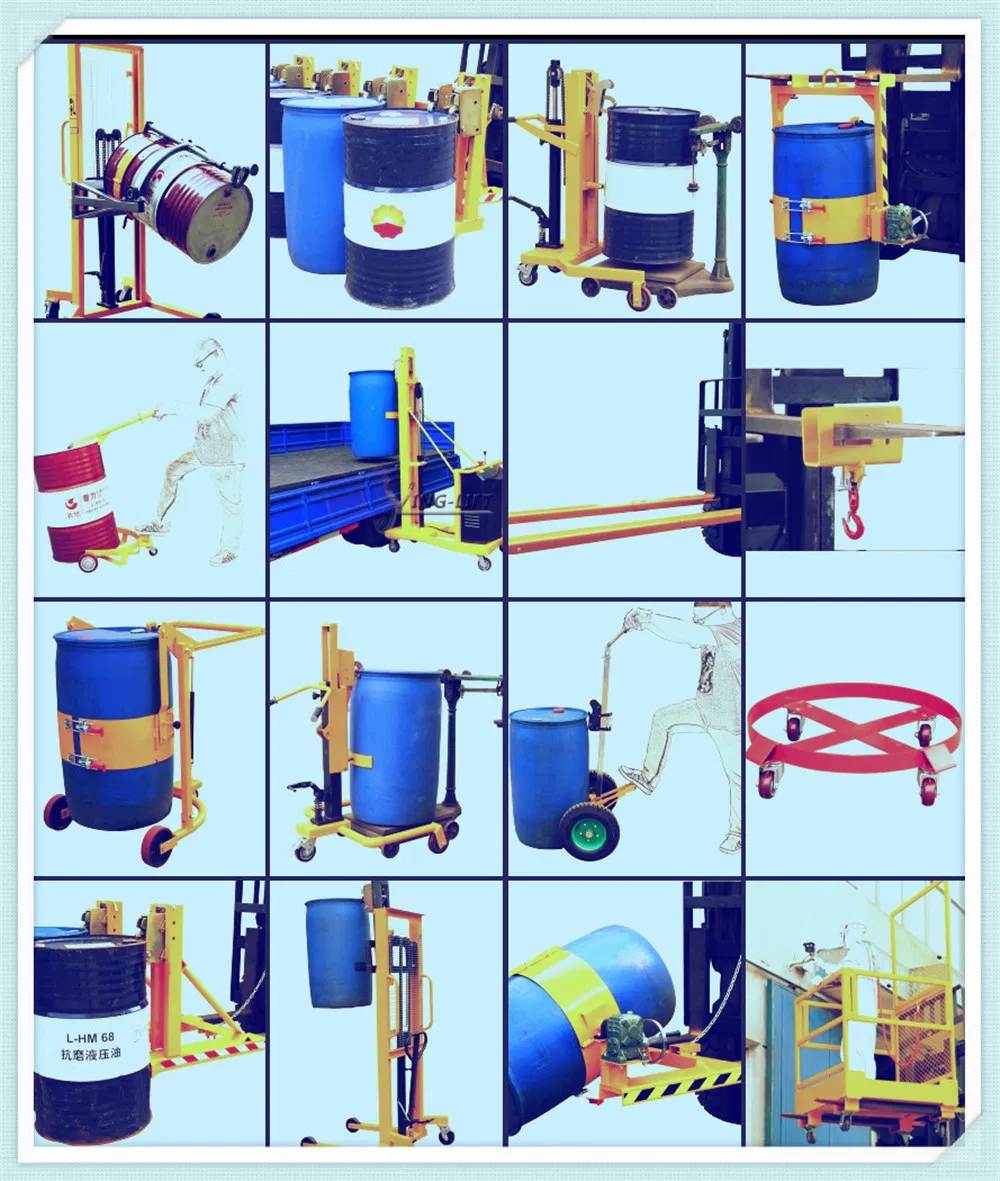

Drum Handler 1 Drum Handler 2

Quality is implemented in every detail through strict production and inspection processes. We have established strong partnerships with over 100 leading enterprises and merchants across 20+ countries and areas.

Customer Feedback
✔

Why Choose Us?

Professional Experience

Over 10 years of expertise in material handling and electro-coating equipment industry.

Fast Delivery

Efficient production cycles ensure in-time delivery to never delay your project schedule.

OEM/ODM Services

Custom design and production of non-standard parts tailored to your specific technical needs.

Quality Assurance

100% inspection of all finished products before shipment with robust protective packaging.

Packaging Standard
?

Frequently Asked Questions

What is the advantage of the E-Shape platform?
The E-shape design allows pallet trucks to place or remove pallets directly from the platform without the need for a floor pit or access ramps.
What safety standards do these lift tables meet?
All our E-shape lift tables are manufactured to comply with European safety standards, specifically EN1570:1990.
Is the lifting speed adjustable?
Yes, the external power pack is equipped with a compensated flow valve that allows for precise control of the lowering speed.
What happens if a hydraulic hose breaks?
The equipment includes a hose burst safety valve that immediately stops the lift table from lowering in the event of a hose failure.
Can I customize the platform size or capacity?
Yes, we provide OEM and ODM services to design and produce non-standard lift tables based on your specific application requirements.
How is the product protected during shipping?
We use reinforced cartons for air delivery and strong pallets with stretch film for sea delivery to ensure the goods arrive in perfect condition.
